Flange Mounting Temperature Instrument Gauge Protection Sleeve Welded Thread Installation

Name: Flange Mounting Temperature Instrument Gauge Protection Sleeve Welded Thread Installation
Brand: CQCY
Price: 50 USD

Wholesale Flange Mounting Temperature Instrument Gauge Protection Sleeve Welded Thread Installation from china suppliers

Brand Name : CQCY

Model Number : Temperature Gauge Protection Sleeve

Certification : CCS/ 3A/ TUV-SII2/3 / IEC Ex/ATEX/CE/NEPSI

Place of Origin : Shanghai, China

MOQ : 1set

Price : USD+50 dollars to 1000 dollars+1set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000+1set+per day

Delivery Time : 10-30 work days

Packaging Details : Carton packing

1.Installation mode : 1.thread installation, welding installation, flange installation

2. Using pressure : 50 MPA (Max)(material and structure according to the medium determine)

3.Typical material : 20 # , 304,316,316L, 347...

4.Installation interface : Thread M20x1.5, M27x2, M33x2, flange GB / 9119, HG / T20592, ASME16.5...

Contact Now

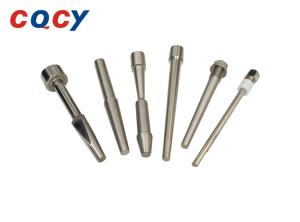

Temperature Gauge Protection Sleeve(Welded installation, thread installation and flange mounting construction)

The thermometer supporting protective sleeve is rich in material, welding installation, thread installation and flange installation structure, structure design is reasonable, installation methods are diverse, to meet the overall design needs. The working conditions involve high flow rate and high pressure, and the measuring medium is flammable, explosive and toxic. The strength accounting is conducted by ASME PTC19.3TW standard, and the bottom and wall thickness of the pipe are measured nondestructive tively by X-ray (RT), and the liquid penetration (PT) nondestructive testing and hydraulic test on the surface or weld of the contact medium to ensure the safe use in the later stage.

Flange Mounting Temperature Instrument Gauge Protection Sleeve Welded Thread Installation

1.Diverse structural types meet temperature measurement needs.

2.Rich in materials, suitable for installation and temperature measurement environments.

3.Safe to use, using PTC19.3TW strength calculation.

4.Inspection of bottom concentricity and thickness of X-ray tubes. Flange Mounting Temperature Instrument Gauge Protection Sleeve Welded Thread Installation
